Architecture¶

This page explains how the terraform-aws-cloud-init module works internally.

Overview¶

The module generates a cloud-init configuration that bootstraps EC2 instances for Puppet-managed infrastructure. The output is a base64-encoded, multi-part MIME message that cloud-init processes during instance first boot.

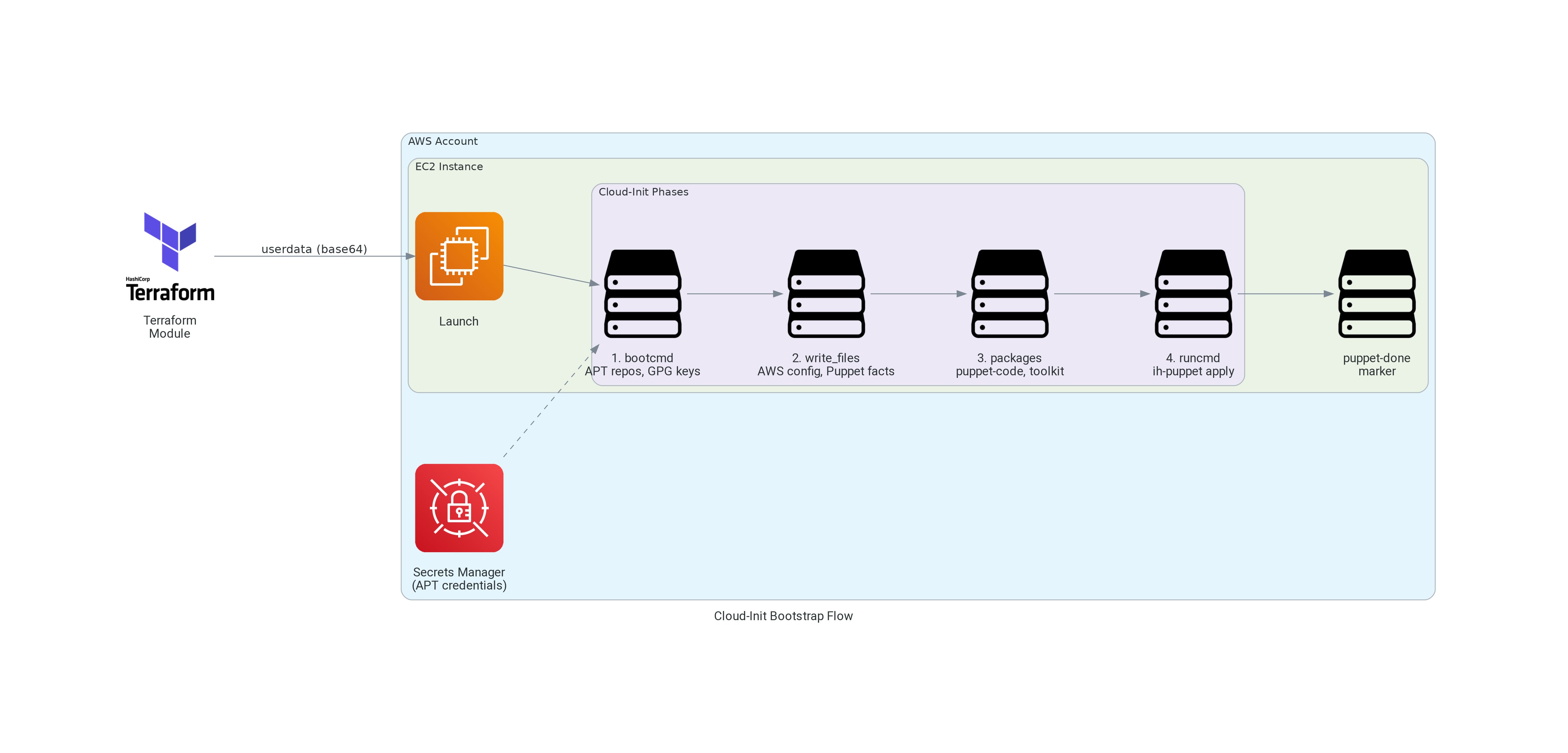

Execution Flow¶

Cloud-init Phases¶

1. bootcmd Phase¶

Runs early in boot, before package installation. This phase:

• Sets up APT authentication - If authFrom is configured, runs a Python script (generate_apt_auth.py) that fetches credentials from AWS Secrets Manager using boto3.

  InfraHouse AMI Required for authFrom

  The authFrom feature requires boto3 (AWS SDK for Python), which is not installed on vanilla Ubuntu. You must use the InfraHouse AMI or pre-install boto3 on your custom AMI for this feature to work.

• Installs InfraHouse APT repository - Downloads and validates GPG keys, creates the apt sources list at /etc/apt/sources.list.d/50-infrahouse.list. This works on vanilla Ubuntu as it only requires curl and gpg.

2. write_files Phase¶

Creates configuration files needed by Puppet and AWS tooling:

3. Package Installation¶

Installs required packages:

• puppet-code - Puppet manifests and code
• infrahouse-toolkit - InfraHouse tools including ih-puppet
• ruby-rubygems, ruby-dev - Ruby dependencies (on noble/oracular)
• Custom packages from var.packages

4. runcmd Phase¶

Executes commands in order:

1. Mount volumes - Runs mount -a if var.mounts is configured
2. Install Ruby gems - Installs json, aws-sdk-core, aws-sdk-secretsmanager
3. Pre-runcmd - User commands from var.pre_runcmd
4. ih-puppet apply - Runs Puppet with configured options
5. Post-runcmd - User commands from var.post_runcmd
6. Completion marker - Creates /var/run/puppet-done

Puppet Facts¶

The module injects several facts for Puppet to use:

# /etc/puppetlabs/facter/facts.d/puppet.yaml
puppet_role: webserver
puppet_environment: production

// /etc/puppetlabs/facter/facts.d/ih-puppet.json
{
  "ih-puppet": {
    "debug": false,
    "root-directory": "/opt/puppet-code",
    "hiera-config": "{root_directory}/environments/{environment}/hiera.yaml",
    "environmentpath": "{root_directory}/environments",
    "module-path": "{root_directory}/modules",
    "manifest": "/opt/puppet-code/environments/production/manifests/site.pp"
  }
}

APT Repository Authentication¶

For private APT repositories requiring authentication, the module:

1. Embeds a Python script (generate_apt_auth.py) in bootcmd
2. Reads repository configuration from /var/tmp/apt-auth.json
3. Fetches credentials from AWS Secrets Manager using boto3 and the instance's IAM role
4. Writes credentials to /etc/apt/auth.conf.d/50user with 0600 permissions

Secret Format¶

The AWS Secrets Manager secret must contain JSON with a single key-value pair:

{
  "<username>": "<password>"
}

Example: For a repository with username deploy and password s3cr3t:

{
  "deploy": "s3cr3t"
}

This generates the following entry in /etc/apt/auth.conf.d/50user:

machine apt.example.com login deploy password s3cr3t

GPG Key Validation¶

The InfraHouse APT repository installation validates GPG key fingerprints:

# bootcmd.sh validates the key fingerprint before trusting it
EXPECTED_FINGERPRINT="..."
ACTUAL_FINGERPRINT=$(gpg --show-keys --with-fingerprint key.gpg | grep -o '[A-F0-9 ]\{50\}')
if [ "$ACTUAL_FINGERPRINT" != "$EXPECTED_FINGERPRINT" ]; then
    exit 1
fi

Using the InfraHouse AMI¶

The InfraHouse AMI is a pre-built Ubuntu Pro image that includes boto3 and other dependencies required for features like authFrom. The AMI is built from infrahouse/infrahouse-ubuntu-pro.

Available Regions¶

Currently, the InfraHouse AMI is only available in us-west-1.

Finding the AMI¶

data "aws_ami" "infrahouse" {
  most_recent = true
  owners      = ["303467602807"]  # InfraHouse

  filter {
    name   = "name"
    values = ["infrahouse-ubuntu-pro-noble-*"]
  }

  filter {
    name   = "virtualization-type"
    values = ["hvm"]
  }
}

Using in Other Regions¶

If you need the InfraHouse AMI in a region other than us-west-1, you have two options:

Option 1: Copy the AMI

# Find the latest InfraHouse AMI in us-west-1
AMI_ID=$(aws ec2 describe-images \
  --region us-west-1 \
  --owners 303467602807 \
  --filters "Name=name,Values=infrahouse-ubuntu-pro-noble-*" \
  --query 'Images | sort_by(@, &CreationDate) | [-1].ImageId' \
  --output text)

# Copy to your target region
aws ec2 copy-image \
  --source-region us-west-1 \
  --source-image-id $AMI_ID \
  --region us-east-1 \
  --name "infrahouse-ubuntu-pro-noble-copy"

Option 2: Build your own AMI

Install boto3 on a vanilla Ubuntu image:

apt-get update && apt-get install -y python3-boto3

Or use pre_runcmd to install it (note: this won't help with authFrom since bootcmd runs first):

# This does NOT work for authFrom - boto3 must be pre-installed
pre_runcmd = ["apt-get update && apt-get install -y python3-boto3"]

Userdata Size Considerations¶

AWS limits userdata to 16KB (compressed). The module provides options to manage size:

• Use keyid instead of key - GPG keys are ~3-5KB each; key IDs are ~50 bytes
• Enable gzip_userdata - Compresses the cloud-init configuration
• Minimize extra_files - Large embedded files consume userdata space
