Architecture

This page describes the AWS infrastructure components deployed by the terraform-aws-percona-server module.

Overview

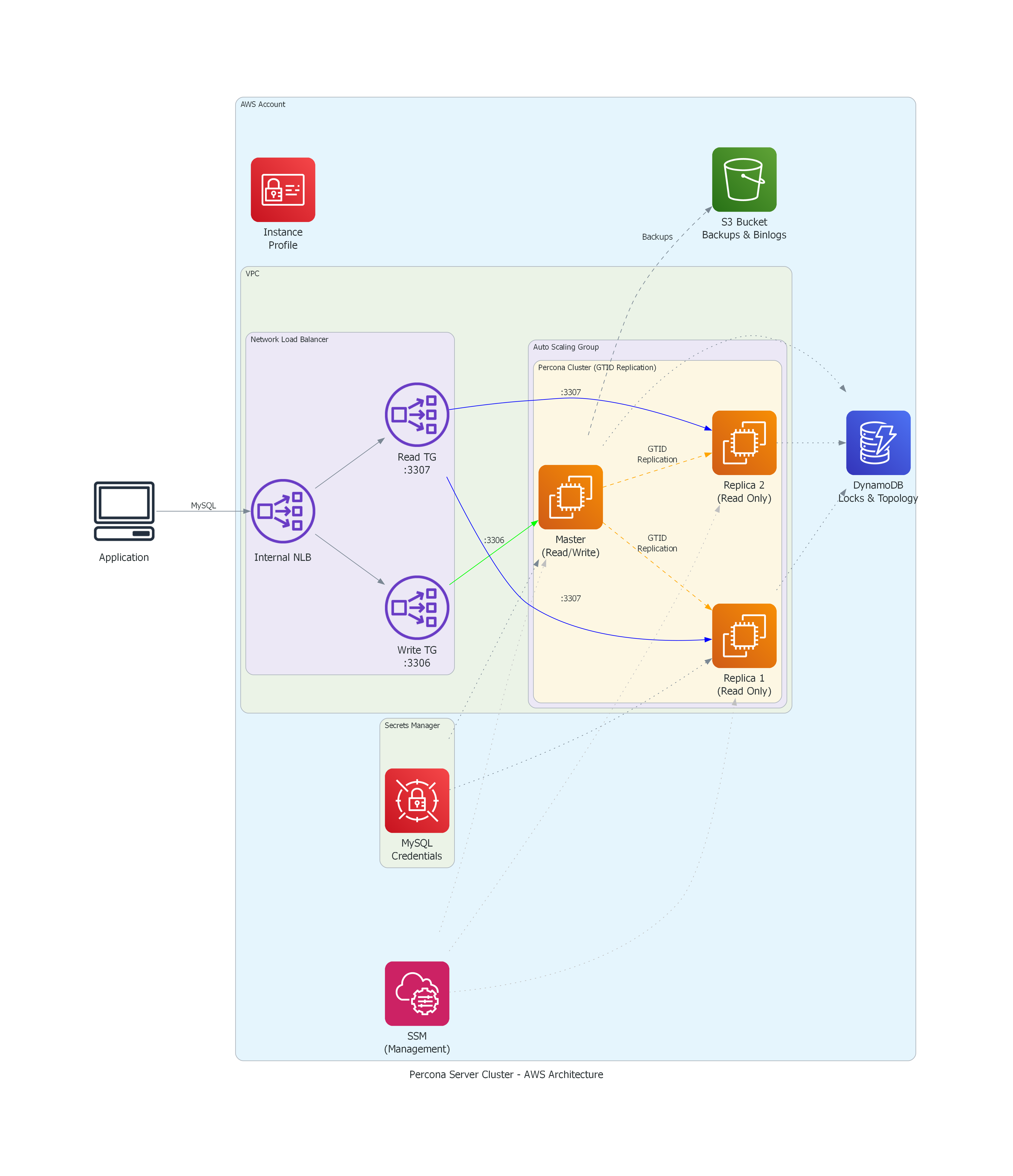

Architecture Diagram

The module deploys a highly available MySQL cluster using Percona Server 8.0 with GTID-based replication. All components are deployed within your VPC for security and low latency.

Components

Network Load Balancer

The internal NLB provides two endpoints for database connections:

Endpoint Port Target Use Case
Write 3306 Master only INSERT, UPDATE, DELETE, transactions
Read 3307 All replicas SELECT queries, reporting

Benefits:

  • Layer 4 load balancing with minimal latency
  • Health checks ensure traffic only goes to healthy instances
  • Automatic failover when master changes (via target group updates)

Auto Scaling Group

The ASG manages the EC2 instances running Percona Server:

  • Instance Count: Always odd (3, 5, 7) for quorum-based decisions
  • Rolling Updates: Configuration changes trigger instance refresh
  • Self-Healing: Unhealthy instances are automatically replaced
  • Launch Template: Defines instance configuration, user data, and tags

EC2 Instances

Each instance runs:

  • Percona Server 8.0: MySQL-compatible database with performance enhancements
  • GTID Replication: Global Transaction Identifiers for consistent replication
  • Puppet Agent: Configuration management via cloud-init bootstrap

Instance Types:

Type Use Case Storage
t3.medium Development/testing EBS only
r6g.xlarge Production (memory-optimized) EBS only
i3en.xlarge High-IOPS workloads NVMe instance store

DynamoDB Table

Used for distributed coordination:

Item Type Purpose
master_lock Ensures single master election
topology Stores cluster topology information
backup_lock Prevents concurrent backup operations

Features:

  • On-demand capacity (pay per request)
  • TTL-enabled for automatic cleanup of stale locks
  • Point-in-time recovery enabled

S3 Bucket

Stores backups and binary logs:

s3://percona-{cluster_id}-backups/
├── {cluster_id}/
│   ├── full/           # Full XtraBackup snapshots
│   ├── incremental/    # Incremental backups
│   └── binlogs/        # Archived binary logs

Lifecycle Policies:

  • Full backups: Retained for backup_retention_weeks
  • Incremental backups: Same retention as full
  • Binary logs: Same retention as full
  • Non-current versions: Deleted after 7 days

Secrets Manager

Stores sensitive credentials:

Secret Contents
{cluster_id}/mysql-credentials root, replication, backup, monitor, orchestrator passwords
{cluster_id}-luks-* LUKS passphrase (instance store only)

Security Groups

Controls network access:

Rule Port Source Purpose
MySQL (clients) 3306 VPC CIDR or specified Application connections
MySQL (internal) 3306 Self Replication traffic
Orchestrator HTTP 3000 Self Web UI and API
Orchestrator Raft 10008 Self Raft consensus
ICMP - VPC CIDR Health checks

Data Flow

Write Path

Application
    │
    ▼
NLB (port 3306)
    │
    ▼
Write Target Group
    │
    ▼
Master Instance ───────► DynamoDB (topology)
    │
    ▼
Binary Log
    │
    ▼
Replicas (GTID replication)

Read Path

Application
    │
    ▼
NLB (port 3307)
    │
    ▼
Read Target Group
    │
    ├───► Replica 1
    └───► Replica 2

Backup Path

Master Instance
    │
    ▼
XtraBackup
    │
    ▼
S3 Bucket (full/)
    │
    ▼
Lifecycle Policy ───► Expiration

Replication

GTID (Global Transaction Identifiers)

Each transaction is assigned a unique identifier:

server_uuid:transaction_id
Example: bf30f9b7-f4de-11f0-8310-06ed89e4c4bd:1-13

Benefits:

  • Automatic positioning during failover
  • No need to track binlog file/position
  • Consistent replication state across all replicas

Topology

        ┌─────────────┐
        │   Master    │
        │  (RW + TG)  │
        └──────┬──────┘
               │ GTID Replication
       ┌───────┴───────┐
       ▼               ▼
┌─────────────┐ ┌─────────────┐
│  Replica 1  │ │  Replica 2  │
│  (RO + TG)  │ │  (RO + TG)  │
└─────────────┘ └─────────────┘
  • RW: Read-Write (master)
  • RO: Read-Only (replicas)
  • TG: Target Group (write for master, read for replicas)

Orchestrator

Orchestrator runs on every cluster node and manages topology detection, automated failover, and graceful switchover.

Raft Consensus

Orchestrator nodes form a Raft cluster for leader election:

  • Raft port: 10008 (inter-node consensus)
  • HTTP port: 3000 (API and Web UI)
  • The Raft leader coordinates failover decisions
  • Quorum requires a majority of nodes (e.g., 2 of 3)

Automated Failover

When the master fails, Orchestrator:

  1. Detects DeadMaster (~10s detection interval)
  2. Elects a replica with the most up-to-date GTID set
  3. Promotes the replica to master (sets read_only=OFF)
  4. Executes post-failover hooks:
    • Updates NLB write target group to point to new master
    • Enables scale-in protection on new master
    • Updates DynamoDB topology
    • Updates EC2 mysql_role tags
  5. Remaining replicas re-point to the new master via GTID

Total failover time: ~11 seconds from instance failure to new master promotion.

ASG Lifecycle Hooks

Lambda-based Raft peer management ensures clean cluster membership:

  • Terminate hook: Lambda compares Raft peers against live ASG instances, removes stale peers from the leader
  • Launch hook: New instance joins Raft after Puppet bootstrap via raft-join.sh, which discovers the leader and cleans up any remaining stale peers
  • Events routed via EventBridge to the Lambda function

Graceful Switchover

For planned maintenance, use:

orchestrator-client -c graceful-master-takeover -d <target-replica-hostname>

This performs a zero-downtime master switch. The old master is left with replication stopped (downtimed) — start it manually with orchestrator-client -c start-replica -i <old-master-hostname>.

High Availability

  • GTID replication ensures data consistency
  • NLB health checks detect failures quickly (10s interval)
  • Target group deregistration delay: 30s for fast failover
  • Orchestrator automated failover with DeadMaster detection (~11s)
  • Graceful switchover for planned maintenance (instant, zero downtime)
  • ASG self-healing replaces terminated instances automatically

Security

Network Security

  • All instances in private subnets
  • No public IPs assigned
  • Access via SSM Session Manager (no SSH bastion needed)
  • Security groups restrict traffic to VPC CIDR

Data Security

  • EBS volumes encrypted at rest
  • Instance store encrypted with LUKS (passphrase in Secrets Manager)
  • MySQL credentials in Secrets Manager
  • IAM roles with least-privilege permissions

Compliance

  • All resources tagged for cost allocation
  • CloudTrail logging for API calls
  • VPC Flow Logs compatible
