Percona Server Monitoring Setup Guide¶

This guide explains how to configure PMM to monitor Percona Server instances running in Auto Scaling Groups using the terraform-aws-percona-server module.

Overview¶

Unlike RDS monitoring (which connects from PMM to the database), Percona Server monitoring works by installing pmm-client on each ASG instance. A Lambda function handles the lifecycle automatically:

• New instances: Lambda installs pmm-client via SSM, configures the PMM server connection, and adds MySQL monitoring
• Terminated instances: Lambda removes the service from PMM via API
• Existing instances: Lambda skips (the setup script is idempotent)

The Lambda runs every 5 minutes via EventBridge.

Architecture¶

EventBridge (every 5 min)
    │
    └──> Lambda Reconciler
           │
           ├──> ASG API (discover instances)
           ├──> PMM HTTP API (list/remove services)
           └──> SSM RunShellScript (install pmm-client)
                  │
                  └──> Percona Server instances
                         │
                         └──> pmm-agent ──gRPC:443──> PMM EC2 (direct)

Why direct connection? pmm-agent uses gRPC (HTTP/2), which AWS ALB does not support (returns HTTP 464). The agent connects directly to the PMM EC2 instance on port 443 using a self-signed certificate (--server-insecure-tls).

Prerequisites¶

• Percona Server ASG deployed with terraform-aws-percona-server
• ASG instances must be SSM-managed (SSM agent installed, IAM role with SSM permissions)
• percona-release pre-installed on instances (handled by Puppet in the Percona Server module)
• Instance credentials stored in Secrets Manager, accessible via ih-secrets and Puppet facts (facter -p percona.credentials_secret)
• Private subnets must have a NAT gateway (Lambda needs to reach AWS APIs)

Step 1: Configure the PMM Module¶

module "percona" {
  source  = "registry.infrahouse.com/infrahouse/percona-server/aws"
  version = "0.6.0"

  # ... Percona Server configuration ...
}

module "pmm" {
  source  = "registry.infrahouse.com/infrahouse/pmm-ecs/aws"
  version = "1.2.0"

  providers = {
    aws     = aws
    aws.dns = aws.dns
  }

  public_subnet_ids  = var.public_subnet_ids
  private_subnet_ids = var.private_subnet_ids
  zone_id            = var.zone_id
  environment        = var.environment
  alarm_emails       = var.alarm_emails

  monitored_asgs = [
    {
      asg_name          = module.percona.asg_name
      service_type      = "mysql"
      port              = 3306
      username          = "monitor"
      security_group_id = module.percona.security_group_id
    }
  ]
}

What This Creates¶

When monitored_asgs is non-empty, the module creates:

monitored_asgs Fields¶

Step 2: Apply and Verify¶

After terraform apply, the Lambda will run automatically within 5 minutes. To invoke it immediately:

# Get the Lambda function name from Terraform output
FUNCTION_NAME=$(terraform output -raw reconciler_lambda_function_arn \
  | awk -F: '{print $NF}')

# Invoke manually
aws lambda invoke \
  --function-name $FUNCTION_NAME \
  output.json && cat output.json

Expected output:

{"status": "ok", "added": 3, "removed": 0, "errors": []}

Step 3: Verify on Instances¶

Connect to an ASG instance and check pmm-client:

aws ssm start-session --target <instance-id>

# Check connection status
sudo pmm-admin status

# Should show:
# Connected : true
# node_exporter    Running
# vmagent          Running
# mysqld_exporter  Running

Step 4: Verify in PMM UI¶

Navigate to Configuration > Inventory > Services. You should see services named {asg_name}/{hostname} for each ASG instance:

Each instance provides:

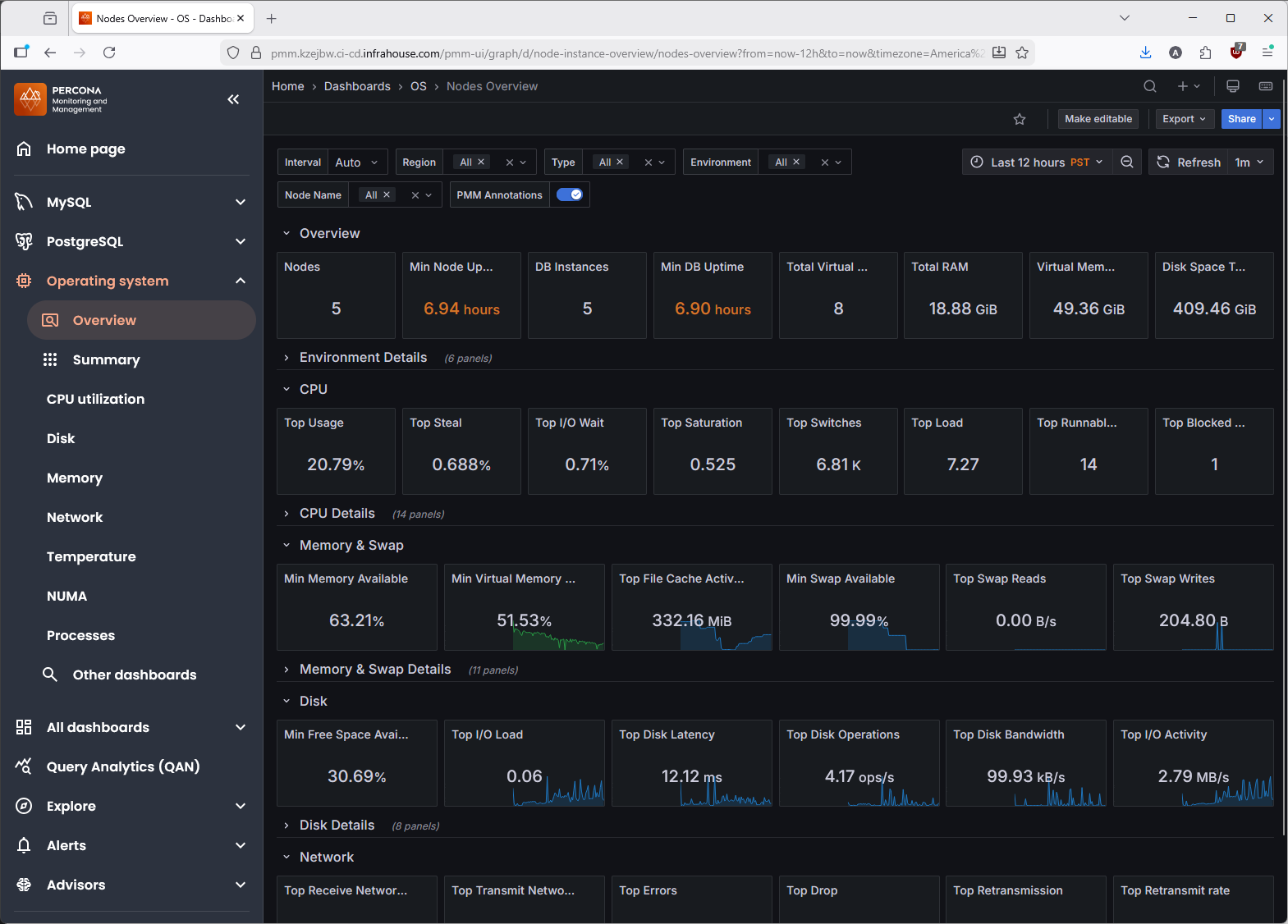

• OS metrics: CPU, memory, disk, network (via node_exporter)

• MySQL metrics: queries, connections, InnoDB, replication (via mysqld_exporter)

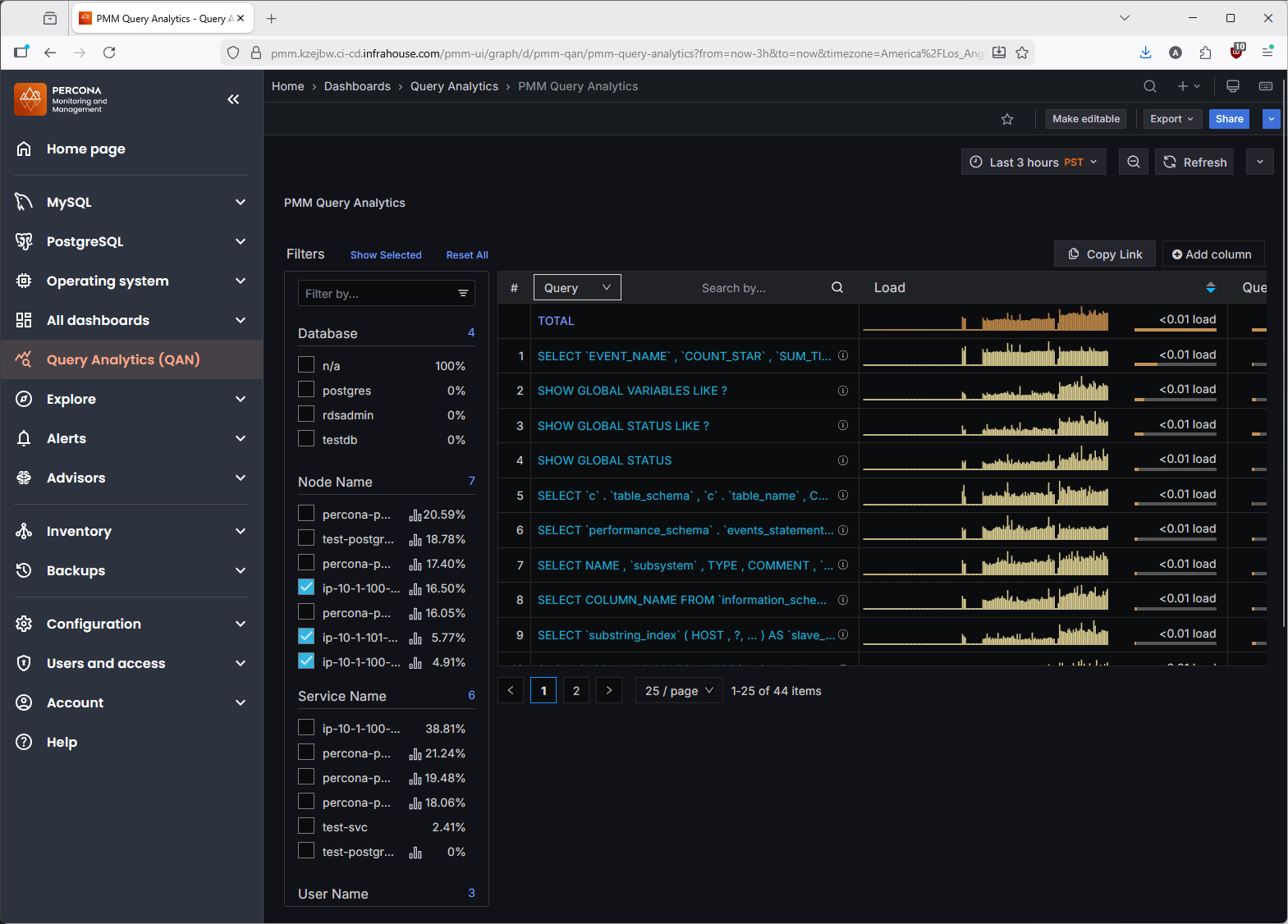

• Query Analytics: slow queries, query patterns (via perfschema)

What the Lambda Installs¶

The Lambda runs an idempotent bash script on each instance via SSM:

1. Install pmm-client (if not present): percona-release enable pmm3-client && apt-get install pmm-client

2. Configure PMM server (if not connected): pmm-admin config --server-insecure-tls --server-url='https://admin:<password>@<pmm-ip>'

3. Add MySQL monitoring (if mysqld_exporter not running): pmm-admin add mysql --username=<user> --password=<pass> --host=127.0.0.1 --port=<port>

The script reads database credentials from the instance's own Puppet facts and Secrets Manager (via ih-secrets get).

Monitoring Multiple ASGs¶

You can monitor multiple Percona Server clusters:

module "pmm" {
  # ...

  monitored_asgs = [
    {
      asg_name          = module.percona_prod.asg_name
      service_type      = "mysql"
      port              = 3306
      username          = "monitor"
      security_group_id = module.percona_prod.security_group_id
    },
    {
      asg_name          = module.percona_analytics.asg_name
      service_type      = "mysql"
      port              = 3306
      username          = "monitor"
      security_group_id = module.percona_analytics.security_group_id
    },
  ]
}

Troubleshooting¶

pmm-agent Connection Timeout¶

dial tcp 10.x.x.x:443: i/o timeout

Cause: Security group doesn't allow port 443 from ASG instances to PMM.

Fix: Verify security_group_id is correctly set in monitored_asgs. The module creates the ingress rule automatically.

"already exists" Error¶

pmm-admin add mysql: service already exists

Cause: Stale service from a previous instance with the same hostname.

Fix: The Lambda automatically removes the stale service via PMM API and retries. If it persists, manually delete from PMM UI: Configuration > Inventory > Services > delete the stale entry.

Credentials Lookup Failure¶

facter: command not found
ih-secrets: command not found

Cause: PATH doesn't include /opt/puppetlabs/bin or ih-secrets is not installed.

Fix: The Lambda script sets PATH explicitly. If the issue persists, verify the instance was provisioned correctly by the Percona Server module.

Lambda Timeout¶

Cause: First-time pmm-client installation takes ~60s per instance. With many instances sequential, may exceed the 300s Lambda timeout.

Fix: The Lambda will catch up on the next invocation (5 minutes later) since the script is idempotent.
