RDS Monitoring Setup Guide¶

This guide explains how to configure PMM to monitor Amazon RDS PostgreSQL instances.

Prerequisites¶

PMM server deployed using this module
RDS PostgreSQL instance running
Network connectivity between PMM and RDS (same VPC or VPC peering)

Architecture Overview¶

PMM Server (ECS) ──┐
                   │
                   ├──> RDS Security Group (Port 5432)
                   │         │
                   │         └──> RDS PostgreSQL Instance
                   │
                   └──> Secrets Manager (PMM Password)

Step 1: Configure Module for RDS Monitoring¶

Add RDS security group IDs to the PMM module:

module "pmm" {
  source  = "registry.infrahouse.com/infrahouse/pmm-ecs/aws"
  version = "1.2.0"

  # ... other configuration ...

  # Grant PMM access to RDS instances
  rds_security_group_ids = [
    aws_security_group.rds_postgres.id,
  ]

  # Optional: Grant RDS IAM role read access to PMM password
  secret_readers = [
    aws_iam_role.rds_monitoring.arn,
  ]
}

This automatically creates security group ingress rules allowing PMM to connect to RDS on port 5432.

Step 2: Create Monitoring User in PostgreSQL¶

Connect to your RDS instance and create a dedicated monitoring user:

-- Create monitoring user
CREATE USER pmm_user WITH PASSWORD 'secure_password_here';

-- Grant necessary permissions for PMM
ALTER USER pmm_user SET SEARCH_PATH TO pmm_user,pg_catalog,public;

-- Grant required privileges
GRANT SELECT ON ALL TABLES IN SCHEMA public TO pmm_user;
GRANT SELECT ON ALL SEQUENCES IN SCHEMA public TO pmm_user;
GRANT EXECUTE ON ALL FUNCTIONS IN SCHEMA public TO pmm_user;

-- For Query Analytics (requires pg_stat_statements)
GRANT pg_read_all_stats TO pmm_user;
GRANT pg_monitor TO pmm_user;

-- Create extension (if not already exists)
CREATE EXTENSION IF NOT EXISTS pg_stat_statements;

RDS Parameter Group Configuration¶

For optimal monitoring, modify your RDS parameter group:

shared_preload_libraries = 'pg_stat_statements'
pg_stat_statements.track = all
pg_stat_statements.max = 10000
track_io_timing = on
track_functions = all

Important: Changing shared_preload_libraries requires instance reboot.

Step 3: Retrieve PMM Admin Password¶

# Get admin password from Secrets Manager
PMM_PASSWORD=$(ih-secrets get pmm-server-admin-password)

# Or use the Terraform output
PMM_SECRET_ARN=$(terraform output -raw admin_password_secret_arn)
PMM_PASSWORD=$(ih-secrets get "$PMM_SECRET_ARN")

Step 4: Add RDS Instance to PMM¶

Option A: Using PMM Web UI¶

Navigate to https://pmm.your-domain.com
Login with username admin and password from Step 3
Go to Configuration → Inventory → Add Instance
Select PostgreSQL
Fill in the details:
Hostname: Your RDS endpoint (e.g., mydb.cluster-abc123.us-west-1.rds.amazonaws.com)
Port: 5432
Username: pmm_user
Password: The password you created in Step 2
Service Name: Descriptive name (e.g., production-postgres)
Click Add Service

Option B: Using PMM API¶

# Set variables
PMM_URL="https://pmm.your-domain.com"
RDS_ENDPOINT="mydb.cluster-abc123.us-west-1.rds.amazonaws.com"
DB_USERNAME="pmm_user"
DB_PASSWORD="secure_password_here"

# Add PostgreSQL service
curl -k -X POST \
    -u "admin:$PMM_PASSWORD" \
    "$PMM_URL/v1/inventory/Services/AddPostgreSQLService" \
    -H "Content-Type: application/json" \
    -d '{
        "node_name": "'"$RDS_ENDPOINT"'",
        "service_name": "postgresql-'"$RDS_ENDPOINT"'",
        "address": "'"$RDS_ENDPOINT"'",
        "port": 5432,
        "username": "'"$DB_USERNAME"'",
        "password": "'"$DB_PASSWORD"'",
        "add_node": {
            "node_name": "'"$RDS_ENDPOINT"'"
        }
    }'

Option C: Using the Provided Script¶

# Use the helper script
./scripts/setup-pmm-client.sh \
    https://pmm.your-domain.com \
    mydb.cluster-abc123.us-west-1.rds.amazonaws.com \
    pmm_user

The script will: 1. Retrieve PMM admin password from Secrets Manager 2. Prompt for database password 3. Register the RDS instance with PMM

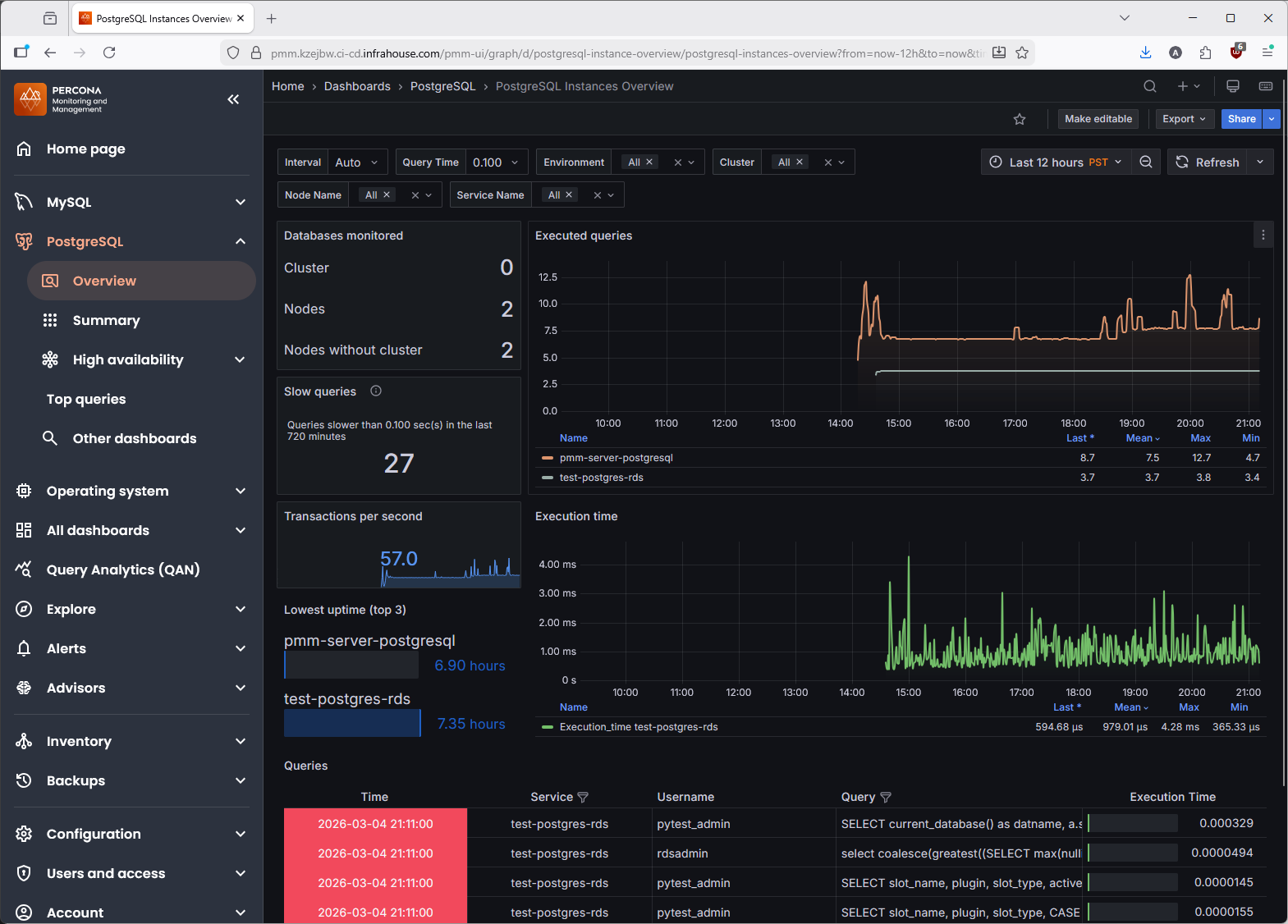

Step 5: Verify Monitoring¶

Navigate to PMM web interface
Go to Dashboards → PostgreSQL → PostgreSQL Instance Summary
Select your RDS instance from the dropdown
Verify metrics are being collected

You should see: - Connection statistics - Query performance metrics - Buffer cache statistics - Replication lag (if applicable)

Advanced Configuration¶

Enable Slow Query Log¶

Modify RDS parameter group:

log_min_duration_statement = 100  # Log queries slower than 100ms

PMM will automatically parse and display slow queries in Query Analytics.

Configure Query Analytics¶

In PMM UI: 1. Go to Configuration → Query Analytics 2. Enable for your PostgreSQL service 3. Set sampling rate (default: 100%)

Monitor Multiple Databases¶

Repeat Step 4 for each RDS instance, using the same rds_security_group_ids configuration.

Security Best Practices¶

Least Privilege: Only grant necessary permissions to pmm_user
Strong Passwords: Use complex passwords for monitoring users
Network Isolation: Keep PMM in private subnets
Audit Logging: Enable RDS audit logs for monitoring user access
Regular Rotation: Consider rotating monitoring user passwords periodically

Troubleshooting¶

Connection Refused¶

Symptom: PMM cannot connect to RDS

Causes: 1. Security group rules not configured 2. VPC/subnet configuration issues 3. RDS publicly_accessible setting

Resolution:

# Verify security group rules
aws ec2 describe-security-groups \
    --group-ids sg-your-rds-sg \
    --query 'SecurityGroups[0].IpPermissions'

# Verify PMM can reach RDS
# (from EC2 instance in same VPC)
telnet mydb.cluster-abc123.us-west-1.rds.amazonaws.com 5432

Authentication Failed¶

Symptom: "password authentication failed for user pmm_user"

Causes: 1. Incorrect password 2. User doesn't exist 3. pg_hba.conf restrictions (RDS default is permissive)

Resolution:

-- Verify user exists
SELECT usename FROM pg_user WHERE usename = 'pmm_user';

-- Reset password
ALTER USER pmm_user WITH PASSWORD 'new_password';

Missing Metrics¶

Symptom: Some metrics not appearing in PMM

Causes: 1. Missing extensions (pg_stat_statements) 2. Insufficient permissions 3. Parameter group not applied

Resolution:

-- Check extensions
SELECT * FROM pg_extension WHERE extname = 'pg_stat_statements';

-- Verify permissions
\du pmm_user

-- Check parameter values
SHOW shared_preload_libraries;
SHOW pg_stat_statements.track;

Query Analytics Not Working¶

Symptom: No queries appear in Query Analytics

Causes: 1. pg_stat_statements not configured 2. Queries too fast (below threshold) 3. Monitoring user lacks permissions

Resolution:

-- Verify pg_stat_statements is active
SELECT * FROM pg_stat_statements LIMIT 1;

-- Grant pg_monitor role
GRANT pg_monitor TO pmm_user;

Example: Complete Terraform Configuration¶

See examples/with-rds-monitoring for a complete example including: - PMM deployment - RDS instance - Security group configuration - IAM roles
