terraform-aws-pypiserver

A production-ready Terraform module for deploying a private PyPI server on AWS with high availability, encryption, automated backups, and monitoring.

Features

  • High Availability: Auto-scaling ECS cluster across multiple availability zones
  • Encryption at Rest: EFS storage encrypted with AWS KMS
  • Encryption in Transit: HTTPS with auto-provisioned ACM certificates
  • Authentication: HTTP Basic Auth with credentials stored in AWS Secrets Manager
  • Automated Backups: Configurable AWS Backup for EFS with retention policies
  • Monitoring: CloudWatch alarms and dashboard for EFS, ECS, and ALB metrics
  • Cost Optimization: EFS lifecycle policies to move old packages to Infrequent Access
  • Auto-Calculation: Task counts and resource allocation derived from instance type

Quick Start

module "pypiserver" {
  source  = "registry.infrahouse.com/infrahouse/pypiserver/aws"
  version = "2.3.0"

  providers = {
    aws     = aws
    aws.dns = aws
  }

  asg_subnets           = ["subnet-private-1a", "subnet-private-1b"]
  load_balancer_subnets = ["subnet-public-1a", "subnet-public-1b"]
  zone_id               = "Z1234567890ABC"
  alarm_emails          = ["ops@example.com"]
}

See Getting Started for a complete walkthrough.

Architecture

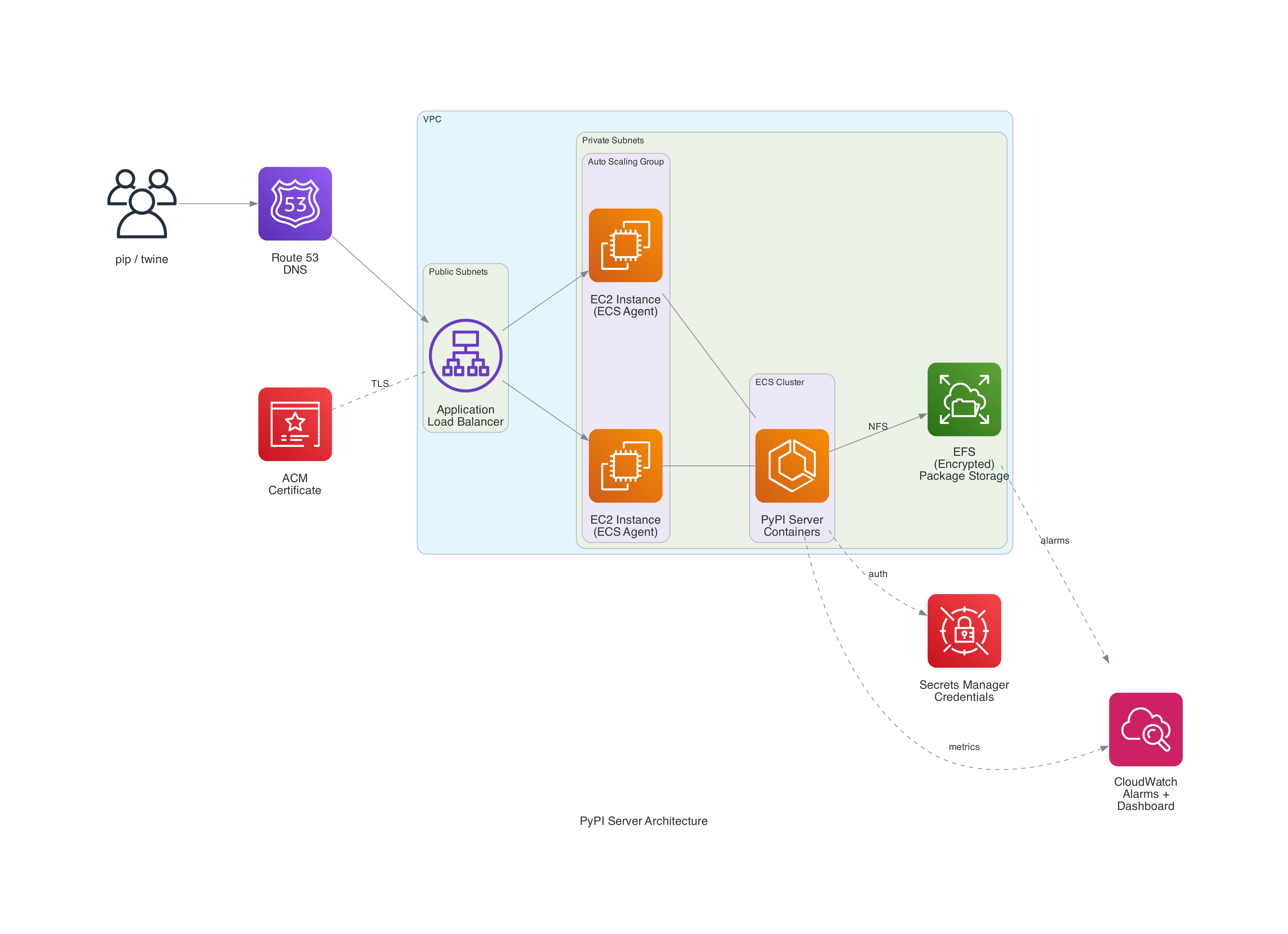

PyPI Server Architecture

How It Works

The module deploys pypiserver as Docker containers on ECS with an Application Load Balancer for HTTPS termination and an encrypted EFS volume for shared package storage. All containers share the same EFS mount, so packages uploaded to any container are immediately available from all others.

The module uses --backend simple-dir (no caching) to avoid cache synchronization issues across distributed gunicorn workers. This trades some per-request performance for guaranteed consistency. See Architecture for details.
