Architecture¶

This page explains how terraform-aws-secret works internally.

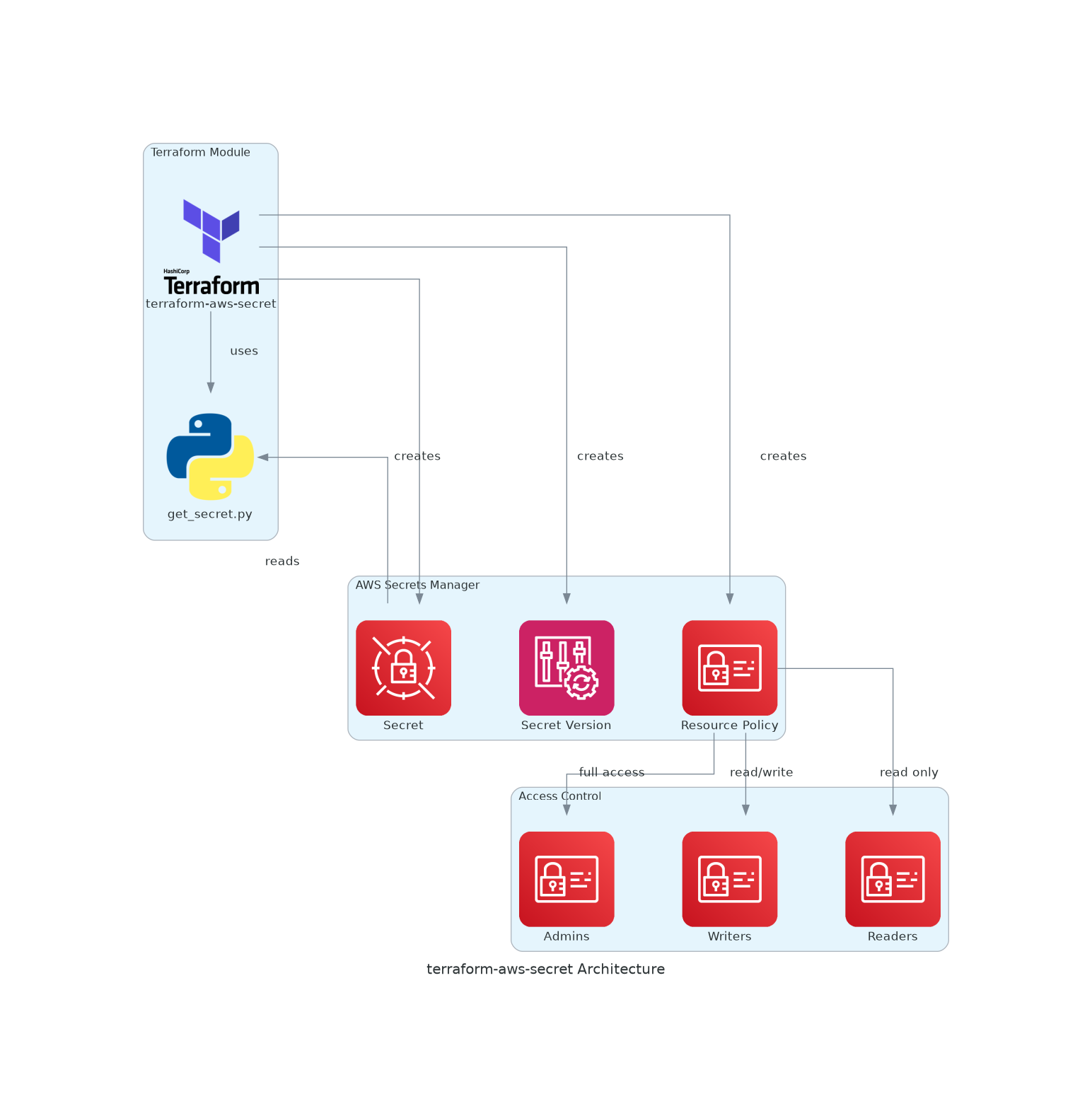

Overview¶

Components¶

Secret Resource¶

The module creates an aws_secretsmanager_secret resource with:

• Name or name prefix
• Description
• Resource-based IAM policy
• Tags for compliance and tracking

Secret Version¶

The aws_secretsmanager_secret_version resource stores the actual secret value:

• When secret_value is provided: stores the value with AWSCURRENT stage
• When secret_value is null: stores placeholder "NoValue" with INITIAL stage

Resource-Based Policy¶

The module generates a least-privilege IAM policy that:

• Grants full access to admins
• Grants read-only access to readers
• Grants read/write access to writers
• Supports wildcard ARNs for SSO roles

External Data Source¶

A Python script (assets/get_secret.py) retrieves the current secret value:

• Returns the actual value if set externally
• Returns empty string for placeholder "NoValue"
• Terraform output converts empty string to null

Access Control Model¶

Permission Levels¶

Wildcard Support¶

The module supports wildcards in role ARNs for dynamic role matching:

readers = [
  "arn:aws:iam::123456789012:role/AWSReservedSSO_Developers_*",
]

This is useful for AWS SSO roles where the suffix changes.

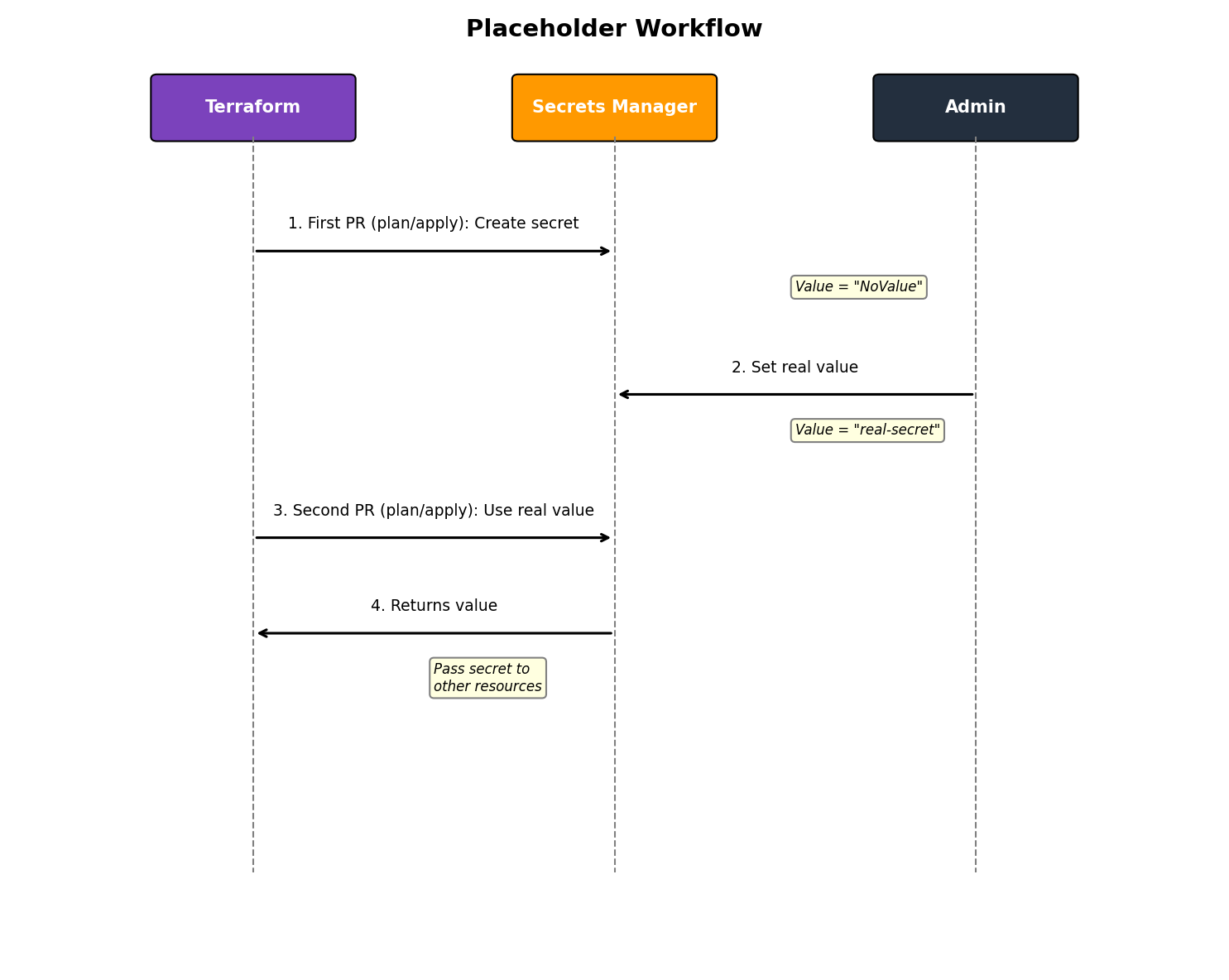

Placeholder Workflow¶

When secret_value is null:

1. Module creates secret with "NoValue" placeholder
2. Administrator sets real value via AWS Console/CLI
3. Next terraform apply reads and outputs the real value
4. Terraform does not overwrite externally-set values

Tags¶

The module applies these tags automatically:
